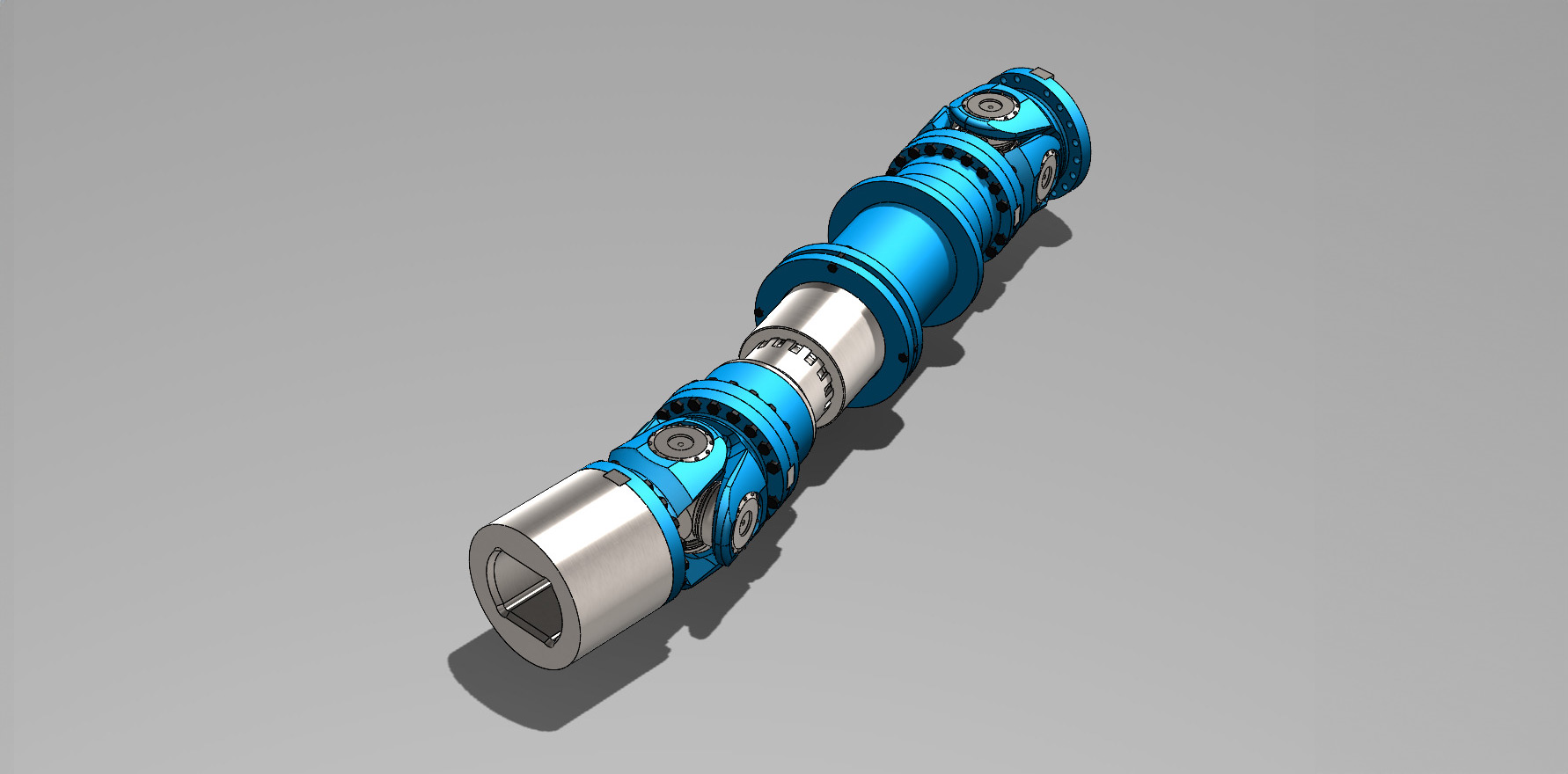

Spindle & Joint

KRST Spindles are an integral part of industrial applications
where high power transmission is essential.

Product List

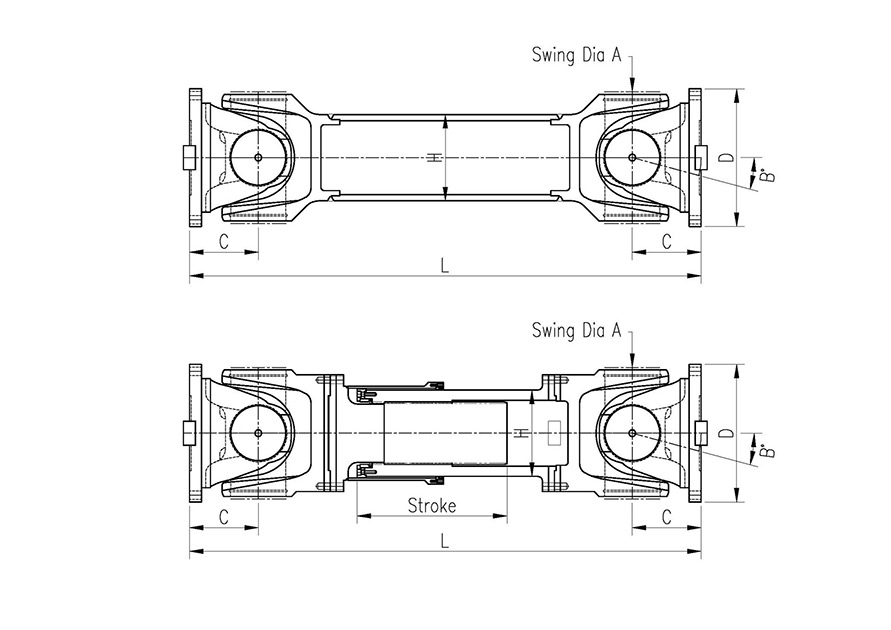

Yoke Type

Detail

Y-Type A Td (kgf.m) Ts (kgf.m) B C D H L min
285 7,020 9,740 15 160 285 197 640
315 11,210 15,230 15 180 315 222 720
350 16,600 23,360 15 195 350 254 770
390 23,730 31,070 15 215 390 267 860
440 40,400 55,300 15 260 440 324 1,040
490 53,700 81,100 15 270 490 340 1,080
550 89,000 124,300 15 310 550 420 1,220
620 112,900 169,200 15 340 620 450 1,360
