Spindle & Joint

KRST Spindles are an integral part of industrial applications
where high power transmission is essential.

Product List

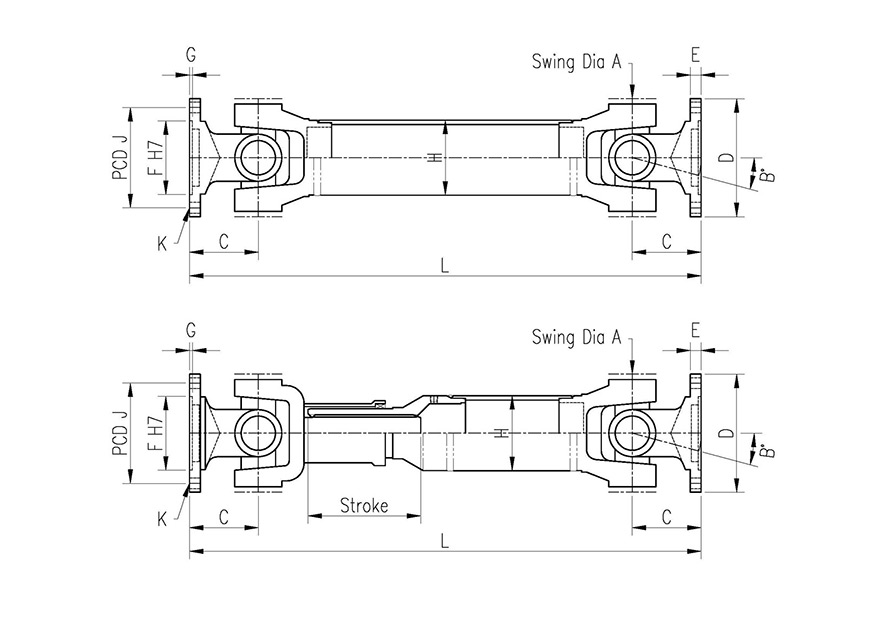

Small Yoke Type

Detail

S-Type A Td (kgf.m) Ts (kgf.m) B C D E F G H J K L min
100 180 240 25 48-58 100 6.5 57 3 36 84.0 6-8 440
120 300 420 25 56-70 120 8.0 75 3 70 101.5 8-10 490
150 690 880 25 90 150 10.0 90 3 100 130.0 8-12 640
180 1,500 2,100 25 85-100 180 12 110 3 104 155.5 8-14 670
200 1,900 2,800 25 110 180 30 110 3 144 155.5 10-16 695
225 2,600 3,300 25 108 225 30 140 5 144 196.0 8-16 735
250 3,000 4,000 25 125 250 45 140 6 162 218.0 8-18 860
