Product List
- Universal Joints
- Other Spindle

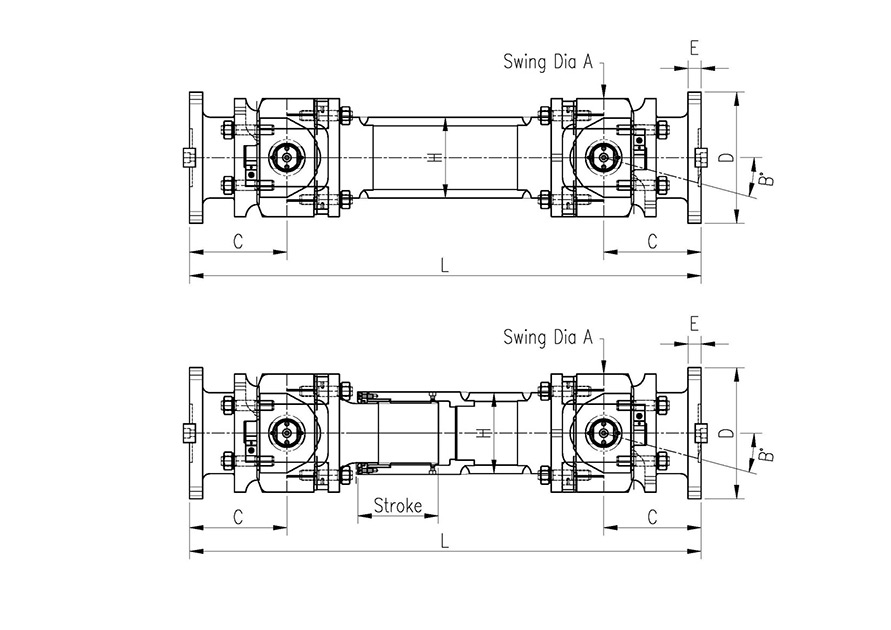

KRST Type
Detail
| K-Type A | Td (kgf.m) | Ts (kgf.m) | B | C | D | H | L min |
|---|---|---|---|---|---|---|---|
| 220 | 5,000 | 10,000 | 20 | 45 | 220 | 178 | 700 |
| 260 | 8,000 | 21,000 | 20 | 50 | 260 | 216 | 800 |
| 300 | 13,000 | 39,000 | 20 | 60 | 300 | 245 | 900 |
| 350 | 21,000 | 57,000 | 20 | 70 | 350 | 299 | 1,000 |
