Roll & Equipment

KRST is Korea's sole specialized manufacturer of custom rolls and equipment.

Product List

Ceramic Roll Equipment

A Roll Changing System that improves the replacement and operation methods of the Hearth Roll in STS APL and prevents heat loss from the furnace.

Product Components

  • Carousel Drum
  • Frame
  • Sealing Device
  • Roll Changing Car
  • Control Panel, etc.

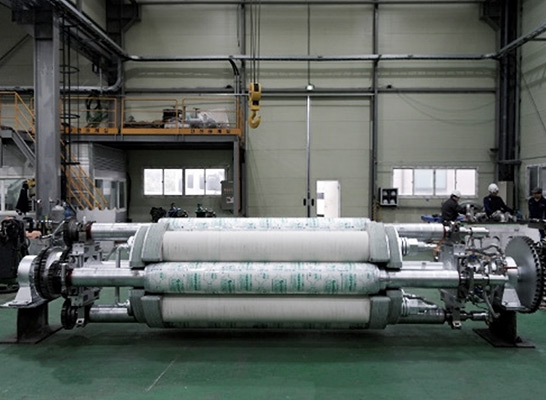

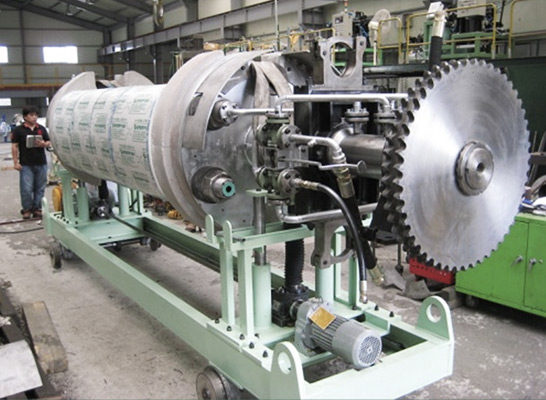

4 Roll Type
2 Roll Type

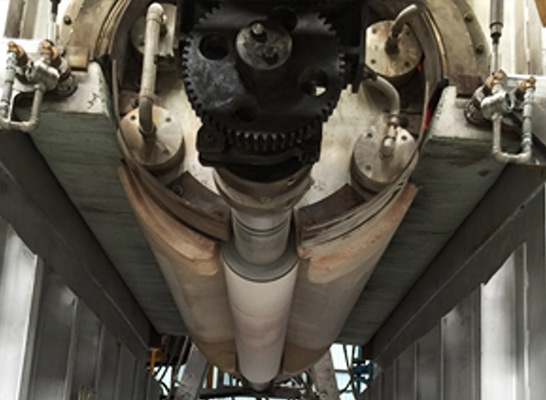

Installed Carousel Drum with Sealing Device

Expected Benefits

  • Improved Sealing Effect: The sealing effect of the Carousel Drum and Sealing Device increases furnace heat efficiency and saves energy.
  • Convenience: Dramatic reduction in time and effort for Ceramic Roll replacement.
  • Cost-effectiveness: Increased Ceramic Roll lifespan due to enhanced furnace stability.
  • Efficiency: Ceramic Roll replacement without stopping the strip, maximizing production efficiency.

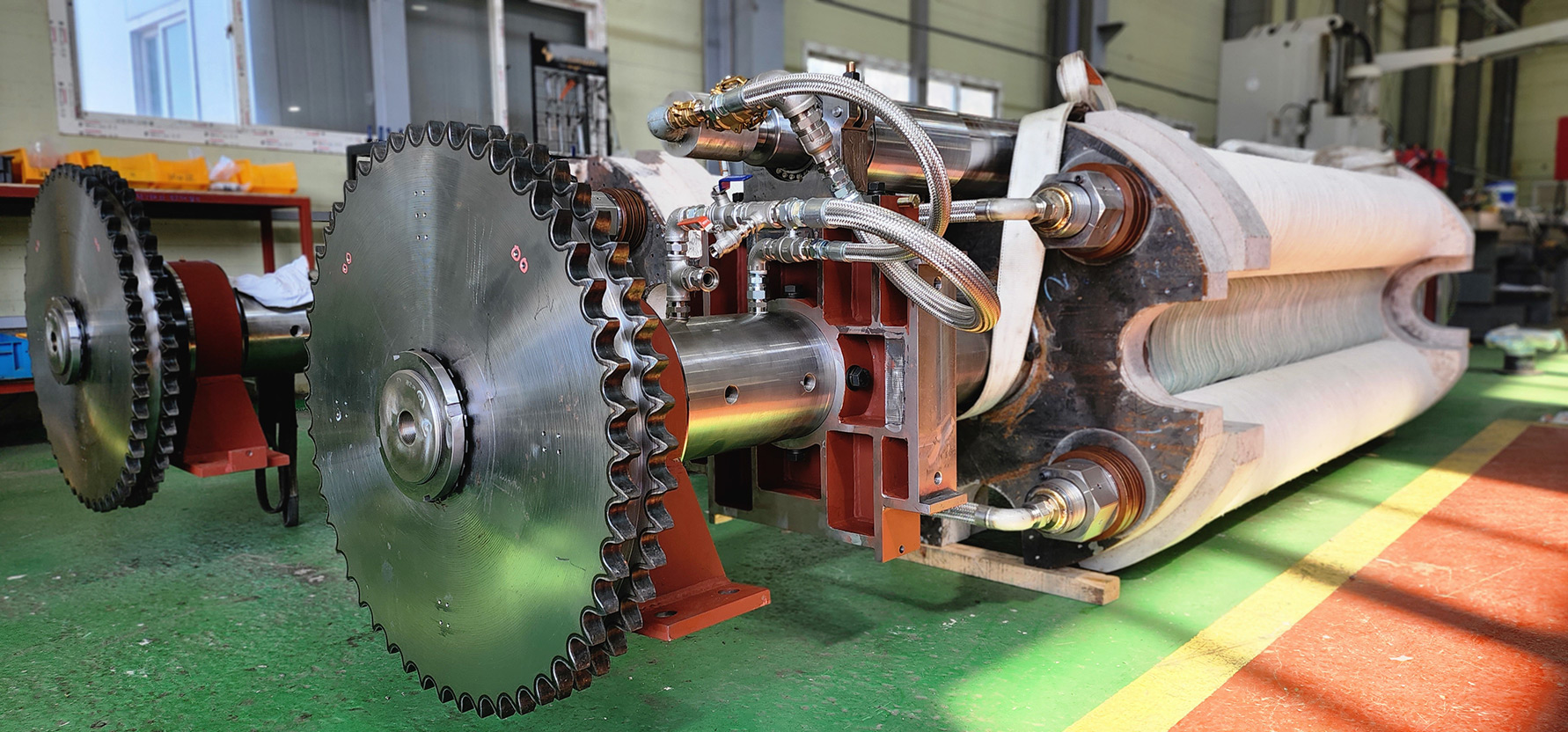

CAROUSEL DRUM

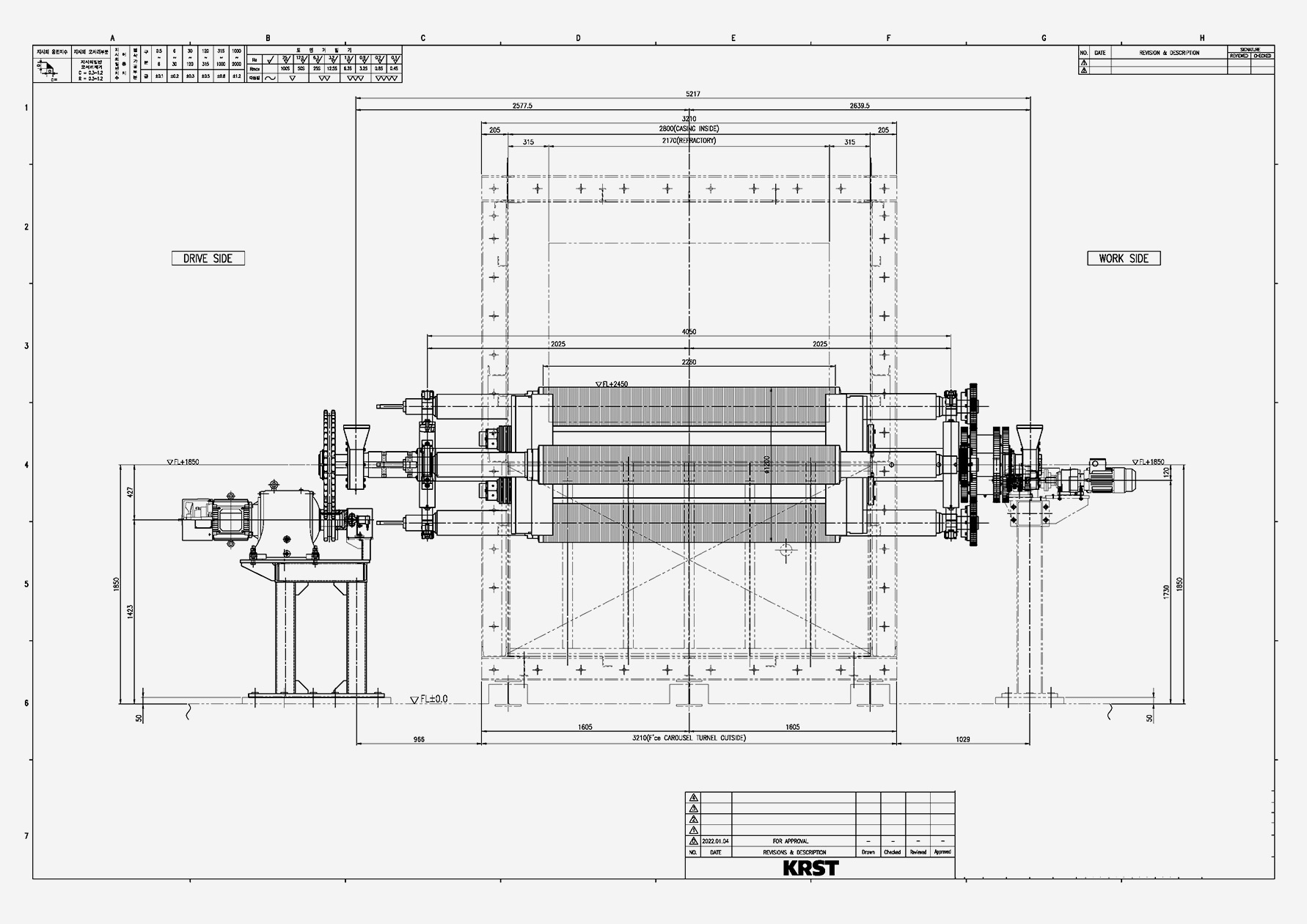

Structure and Installation Examples
