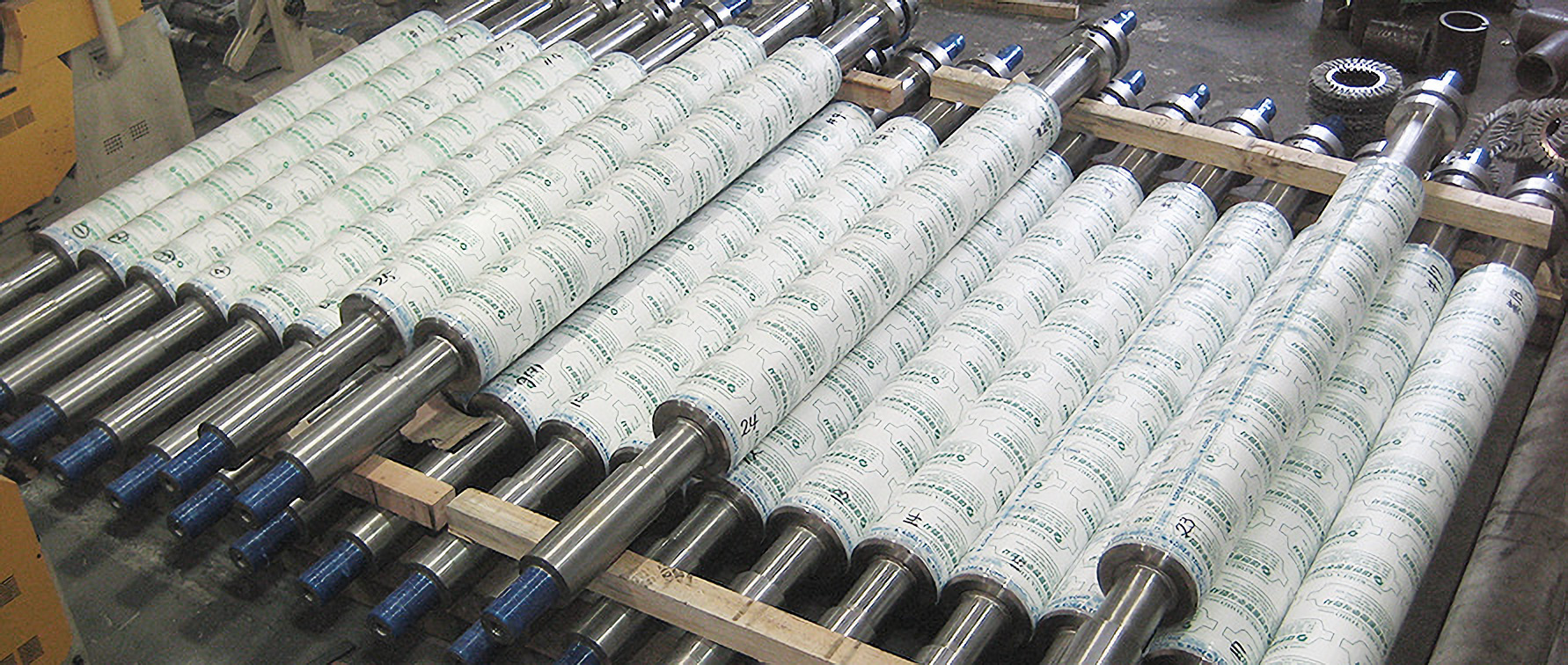

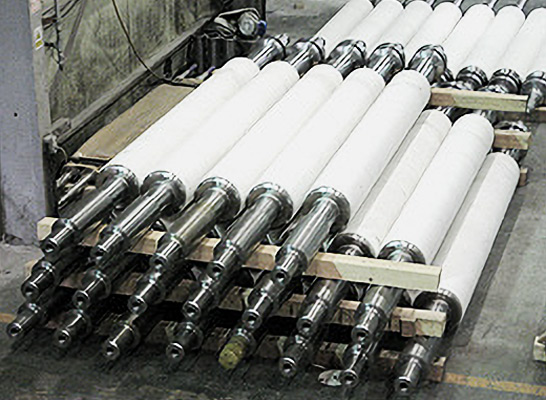

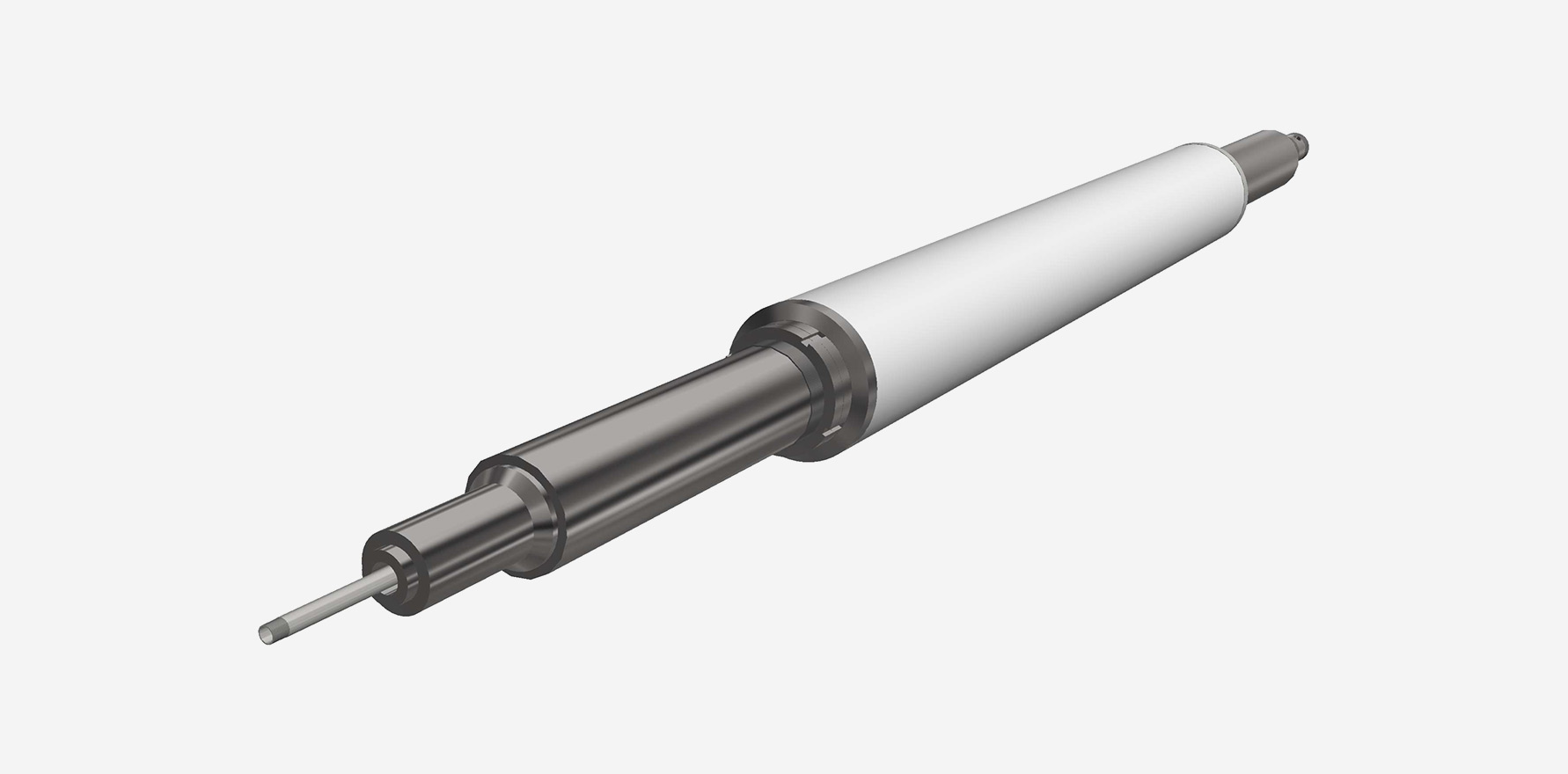

Ceramic Disk Roll
Ceramic Disk Roll serves as a high-temperature Hearth Roll for diverse applications, including loading, conveying, and forming in high-temperature heating and heat treatment furnaces.
Product Features
- All products are crafted from Non-Asbestos materials
- Rigorous pre-treatment of raw materials prevents dents from foreign object embedding on strip surfaces
- Tailored hardness can be optimized for operating environments based on customer needs
- Low thermal shrinkage ensures stability and deformation-free performance over extended periods
- Excellent insulation properties minimize energy loss
- In-house ceramic material production ensures quality control and a reliable supply chain

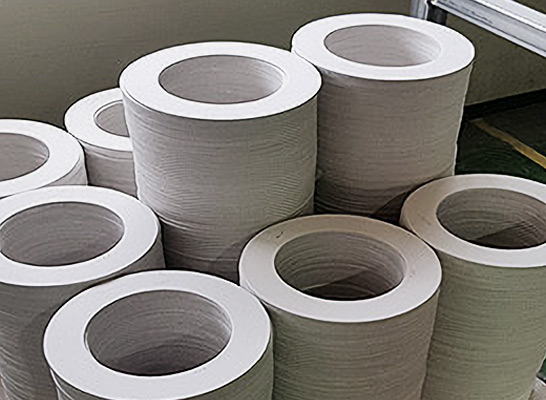

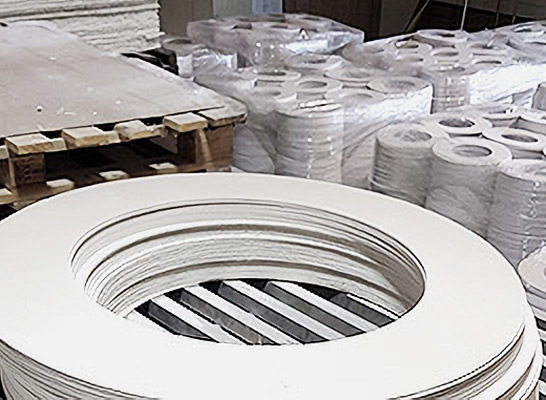

Ceramic Disk
| Model | Application | Features | Type |
|---|---|---|---|
| M Type | STS HAPL, CAPL | Standard Type | Disk |
| C Type | For thin STS CAPL | Improved Dent Resistance | Disk |
| A Type | STS HAPL, CAPL (Ultra-high temperature over 1200°C) | Enhanced Heat Resistance, Crack-free | Cassette |
| G Type | STS HAPL, CAPL | Eco-friendly Ceramic Disk (with Bio Soluble Fiber) | Cassette |
Application Lines
- Stainless Steel Heat Treatment Furnace APL (Annealing & Pickling Line)
- Heat Treatment Furnaces for Carbon Steel, Electrical Steel Sheets, and Non-ferrous Metals (ACL, DNL, CAL)
- Glass Heat Treatment Furnaces (Forming Line, Annealing Lehr)
Production Process
